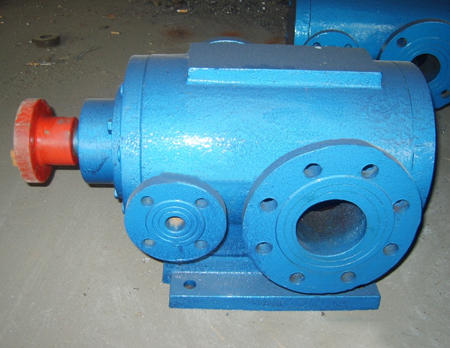

3QGB三螺桿保溫泵是一種容積式泵，顯著的優點是結構簡單、體積小、允許高轉速工作平穩、壓力脈動小、流量穩定、噪音低、。正是利用螺桿嚙合原理，依靠旋轉的螺桿在泵套內相互嚙合，把被輸送的介質封閉在嚙合腔內，沿螺桿軸向連續勻速地推至排出口，為系統提供穩定的壓力。
3QGB三螺桿保溫泵采用鑄鋼制成，有保溫和不帶保溫兩種，建議高粘度介質采用保溫結構的螺桿泵。
3QGB三螺桿保溫泵密封性能好，采用機械密封，根據用戶不同的介質，機械密封磨擦件選用不同的材質，對于高粘度介質，選用機械、好的硬質合金材料，了高溫下的密封性能。
3QGB三螺桿保溫泵適用于輸送燃料油、潤滑油、液壓油、重油、瀝青及其它類似油的潤滑性液體。應用于石油、化纖、冶金、機械、電力、機床、船舶、玻璃、公路等各行各業。
3QGB三螺桿保溫泵技術參數表：
| 流量 | 出口壓力 MPa |
轉速 r/min |
功率KW | 汽 蝕余量 |
電機型號 | ||
| m3/h | L/min | 軸功率 | 電機功率 | ||||
| 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 | 90L-6-B3 |
| 2.7 | 45 | 1 | 1.2 | 1.5 | 100L-6-B3 | ||
| 25 | 42 | 1.6 | 1.6 | 2.2 | 112M-6-B3 | ||
| 2.4 | 40 | 2.5 | 2.8 | 4 | 132M1-6-B3 | ||
| 4.2 | 70 | 0.6 | 1450 | 1 | 1.5 | 5 | 90L-4-B3 |
| 4 | 66 | 1 | 1.7 | 2.2 | 100L1-4-B3 | ||
| 3.8 | 63 | 1.6 | 2.8 | 3 | 100L3-4-B3 | ||
| 3.5 | 58 | 2.5 | 4.3 | 5.5 | 132S-4-B3 | ||
| 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 | 100L-6-B3 |
| 4 | 66 | 1 | 1.7 | 2.2 | 112M-6-B3 | ||
| 6.3 | 105 | 0.6 | 1450 | 1.5 | 2.2 | 100L1-4-B3 | |
| 6.1 | 101 | 1 | 2.3 | 3 | 100L2-4-B3 | ||
| 8 | 133 | 0.8 | 970 | 2.3 | 3 | 5 | 100L-6-B3 |
| 8 | 133 | 1 | 1.5 | 2.2 | 112M-6-B3 | ||
| 14 | 233 | 0.6 | 1450 | 2.8 | 4 | 100L1-4-B3 | |
| 14 | 233 | 4 | 4.3 | 5.5 | 100L2-4-B3 | ||
| 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 | 132S-6-B3 |
| 8.25 | 137.9 | 1 | 3.18 | 4 | 132M1-6-B3 | ||
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | 112M-4-B3 | |
| 12.6 | 210.5 | 1 | 4.86 | 7.5 | 132M-4-B3 | ||
| 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 | 132M1-6-B3 |
| 9.5 | 158 | 1 | 3.6 | 5.5 | 132M2-6-B3 | ||
| 15.1 | 251 | 0.6 | 1450 | 3.6 | 5.5 | 132S-4-B3 | |
| 14.6 | 243 | 1 | 5.5 | 7.5 | 132M-4-B3 | ||
| 17 | 283.3 | 0.8 | 950 | 4.3 | 7.5 | 5.5 | 160M-6-B3 |
| 25.7 | 428 | 0.6 | 1450 | 5.4 | 7.5 | 132M-4-B3 | |
| 25 | 417 | 1 | 8.5 | 11 | 160M-4-B3 | ||
| 23.9 | 398.5 | 0.6 | 950 | 5.5 | 7.5 | 5.5 | 160M-6-B3 |
| 23.1 | 386.3 | 1 | 8.6 | 11 | 160L-6-B3 | ||
| 36.6 | 610.3 | 0.6 | 1450 | 8.4 | 11 | 160M-4-B3 | |
| 35.7 | 594.5 | 1 | 13.1 | 15 | 160L-4-B3 | ||
| 27.5 | 485.5 | 0.6 | 950 | 6.3 | 11 | 5.5 | 160L-6-B3 |
| 26.9 | 448.3 | 1 | 10.5 | 15 | 180L-6-B3 | ||
| 41.9 | 698.3 | 0.6 | 1450 | 9.6 | 11 | 160M-4-B3 | |
| 41 | 684.1 | 1 | 16 | 18.5 | 180M-4-B3 | ||
| 24.2 | 403.5 | 0.6 | 960 | 5.52 | 7.5 | 5.5 | 160M-6-B3 |
| 23.6 | 394.6 | 1 | 8.52 | 11 | 160L-6-B3 | ||
| 37 | 615.9 | 0.6 | 1450 | 8.52 | 11 | 160M-4-B3 | |
| 36.1 | 602.4 | 1 | 13 | 15 | 160L-4-B3 | ||
| 28.2 | 470.9 | 0.6 | 950 | 6.6 | 11 | 5.5 | 160L-6-B3 |
| 27.5 | 457.6 | 1 | 10.2 | 15 | 180L-6-B3 | ||
| 43.1 | 718.8 | 0.6 | 1450 | 10 | 15 | 160L-4-B3 | |
| 41.9 | 698.5 | 1 | 15.5 | 18.5 | 180M-4-B3 | ||
| 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 | 160L-6-B3 |
| 52.6 | 875.4 | 0.6 | 1450 | 12 | 15 | 160L-4-B3 | |
| 52 | 866 | 0.8 | 14.9 | 18.5 | 180M-4-B3 | ||
| 51.4 | 856.1 | 1 | 18.6 | 22 | 180L-4-B3 | ||
| 48 | 800 | 0.8 | 950 | 13.3 | 15 | 5.5 | 180L-6-B3 |
| 72.7 | 1212 | 0.6 | 1450 | 16.5 | 18.5 | 180M-4-B3 | |
| 72 | 1200 | 0.8 | 20.4 | 22 | 180L-4-B3 | ||
| 71.2 | 1187 | 1 | 25.5 | 30 | 200L-4-B3 | ||
| 56.9 | 948.9 | 0.6 | 950 | 12.5 | 15 | 5.5 | 180L-6-B3 |
| 55.7 | 928.6 | 1 | 20.8 | 30 | 225L-6-B3 | ||
| 86.9 | 1448.3 | 0.6 | 1450 | 19.1 | 22 | 180L-4-B3 | |
| 85 | 1417.2 | 1 | 31.8 | 37 | 225S-4-B3 | ||
| 60.9 | 1015 | 0.6 | 950 | 13.7 | 18.5 | 5.5 | 200L1-6-B3 |
| 58.9 | 951.7 | 1 | 21.8 | 30 | 255M-6-B3 | ||
| 96.7 | 1611 | 0.6 | 1450 | 21.9 | 30 | 200L-4-B3 | |
| 94.6 | 1577 | 1 | 33.9 | 45 | 255M-4-B3 | ||
| 67.9 | 1131 | 0.6 | 950 | 15.5 | 18.5 | 5.5 | 200L1-6-B3 |
| 65.4 | 1090 | 1 | 24.5 | 30 | 255M-6-B3 | ||
| 108 | 1802 | 0.6 | 1450 | 24.7 | 30 | 200L-4-B3 | |
| 105 | 1760 | 1 | 38.2 | 45 | 255M-4-B3 | ||
| 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 | 200L1-6-B3 |
| 77.2 | 1285 | 1 | 28.2 | 37 | 250M-6-B3 | ||
| 126 | 2101 | 0.6 | 1450 | 28.5 | 37 | 225S-4-B3 | |
| 123 | 2059 | 1 | 44.1 | 55 | 255M-4-B3 | ||
| 158 | 2640 | 0.6 | 950 | 34.6 | 45 | 5.5 | Y280S-6-B3 |
| 154 | 2582 | 1 | 54.5 | 75 | Y315S-6-B3 | ||
| 241.7 | 4029.7 | 0.6 | 1450 | 53.8 | 75 | Y280S-4-B3 | |
| 236.5 | 3942.2 | 1 | 82.2 | 90 | Y280M-4-B3 | ||
